A Short History of Replay Protection

This article is based on the slides I used for a presentation at the Hong Kong Bitcoin Developer meetup on November 1st, plus some feedback I received on the chainspl.it Slack. This was before SegWit2x was called off, but in the interest of (my) time, I haven’t adjusted this article to reflect that. I’m sure something similar will happen again anyway and it’s a good mental exercise to think through what could have happened.

Investor TL&DR

For non-technical readers a useful perspective — even if technically not accurate — is to distinguish between airdrops and contentious hard forks. This assumes you are in possession of your private keys, as you should.

Airdrop:

  • “free” coins based on BTC balance at date X
  • safe to ignore, risky to use

Free money?! Bitcoin Cash, Bitcoin Gold, etc.

  • 1 BTC on Aug 1 means 1 BCH
  • same private key controls both
  • distrust “official” wallets; assume malware. Better safe than sorry. Sooner or later one of these airdrops coins will contain malware. Even without malware, simple incompetence of developers can lead to loss of your bitcoin. Most Bitcoin developers have better things to do than inspect this code. They will write gloating articles explaining what went wrong after you lost your Bitcoin. Wait for well established wallets to support; but they can make mistakes too. Remember Cryptsy.
  • move BTC to fresh wallet first (just in case)
  • privacy (traces on two blockchains)

It’s safe to ignore due to replay protection, risky to use due the above concerns.

Contentious Hard Fork:

  • disagreement on what Bitcoin is
  • not safe to ignore, unless you HODL

SegWit2x might have gotten messy:

  • 1 BTC on Nov ~15 -> 1 BT1 + 1 BT2
  • some companies claim BT1 is Bitcoin
  • other companies claim BT2 is Bitcoin
  • several companies will go back and forth
  • no or little replay protection
  • never assume companies know what they’re doing

It’s not safe to ignore due to lack of replay protection, unless you don’t use it (HODL). It’s risky to use due the above concerns, though unlike airdrops at least the official wallets are unlikely to contain malware.

Remember The DAO?

  • Code is Law!
  • $60M ETH stolen from smart contract
  • Most developers, holders and miners agreed on need to fork
  • Soft-fork wasn’t possible (halting problem)
  • Deadline for hard fork was not self imposed

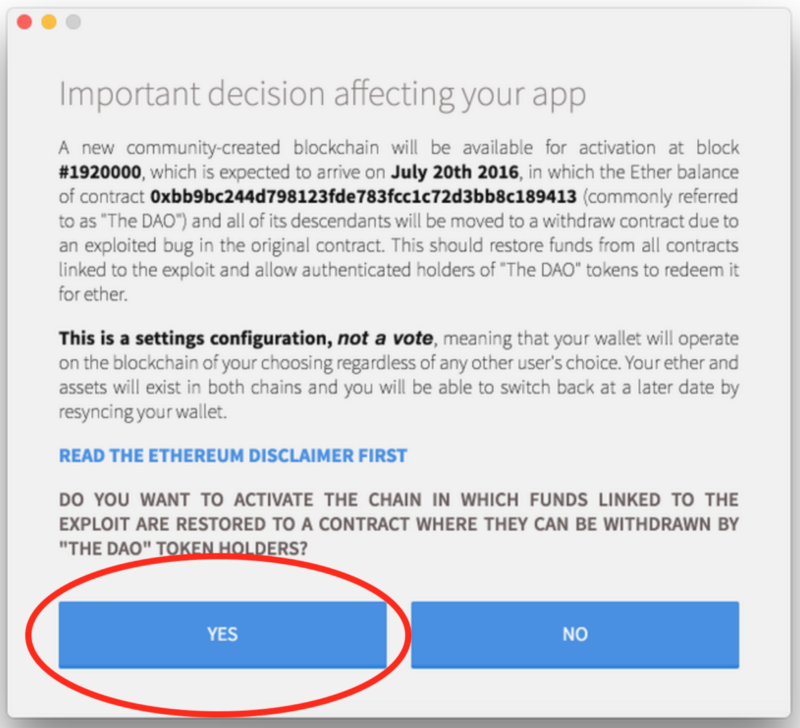

Just click YES

Ethereum Classic is born

Not everyone agreed with this hard-fork. Initially many people didn’t think ETC had a chance to survive, as the theory up to then was that majority hash power would simply crush a minority chain into obvlivion.

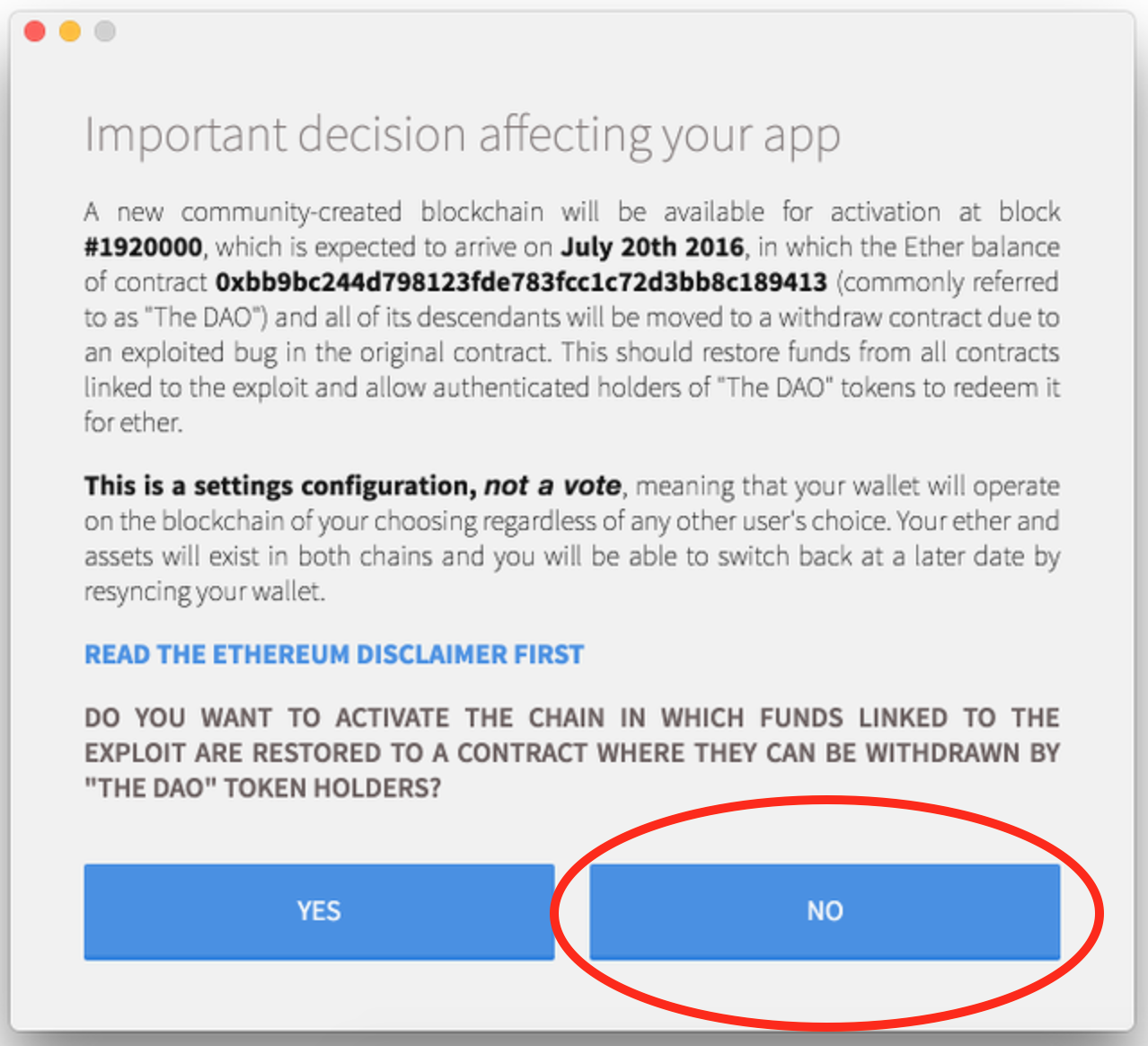

Just click NO

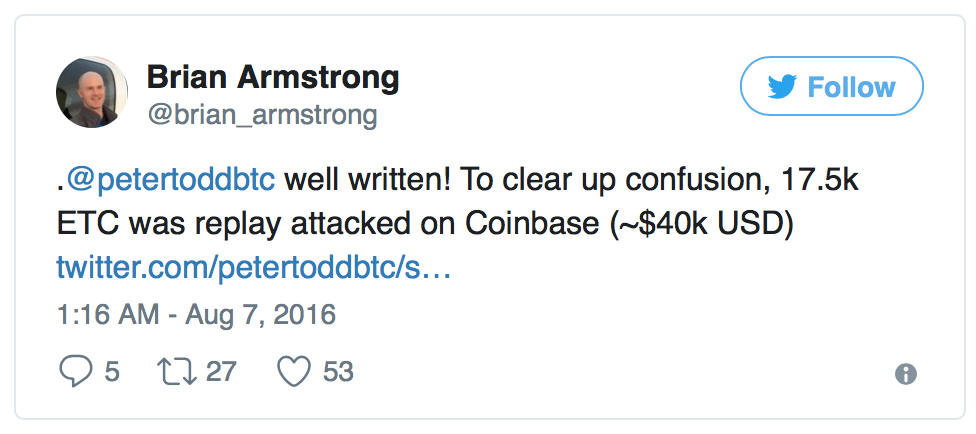

The First Replay Attacks

Don’t assume companies in this space know what they’re doing under all circumstances.

They had several weeks to prepare. I don’t mean to pick on Coinbase though; others probably made similar mistakes.

Manual replay protection — Split contract

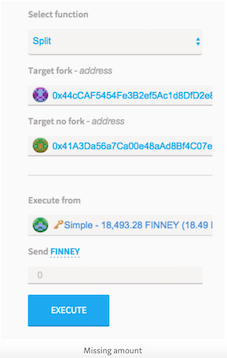

Example UI in Mist

Various split contracts were proposed and their drawbacks were discussed in great detail, probably after people lost money.

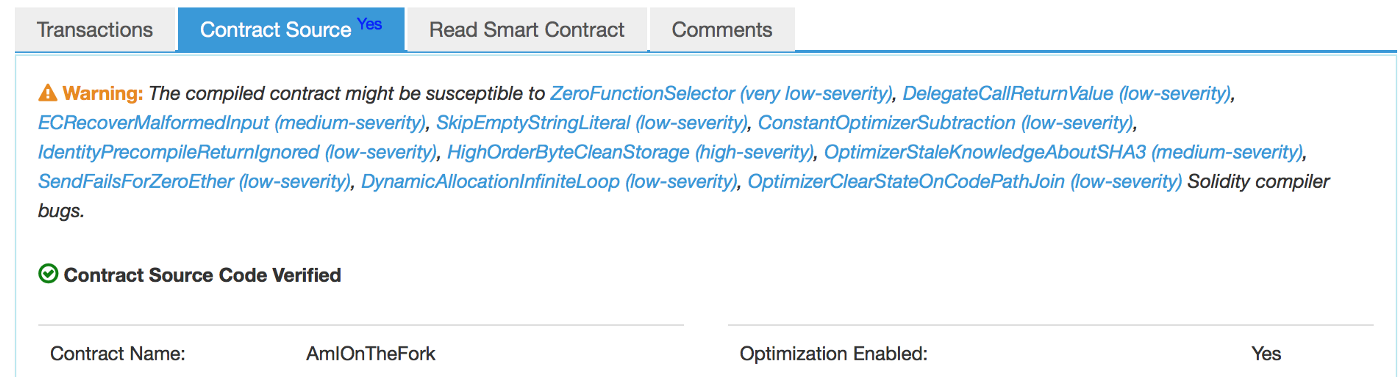

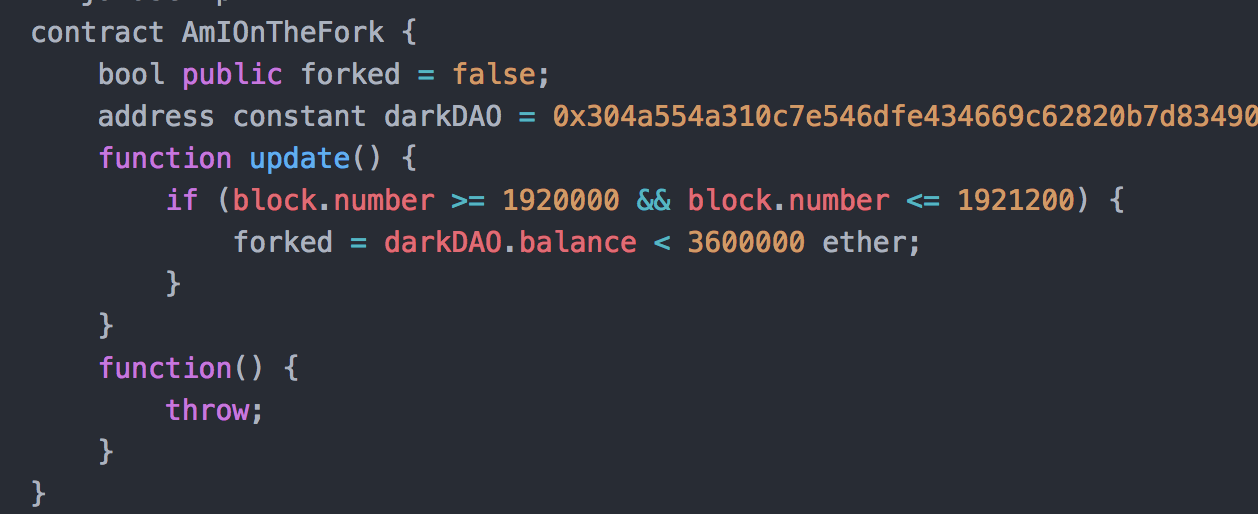

Part of the code.
A year later, as Solidy, the EVM and knowledge of bad security practices improved, more subtle issues become apparant.

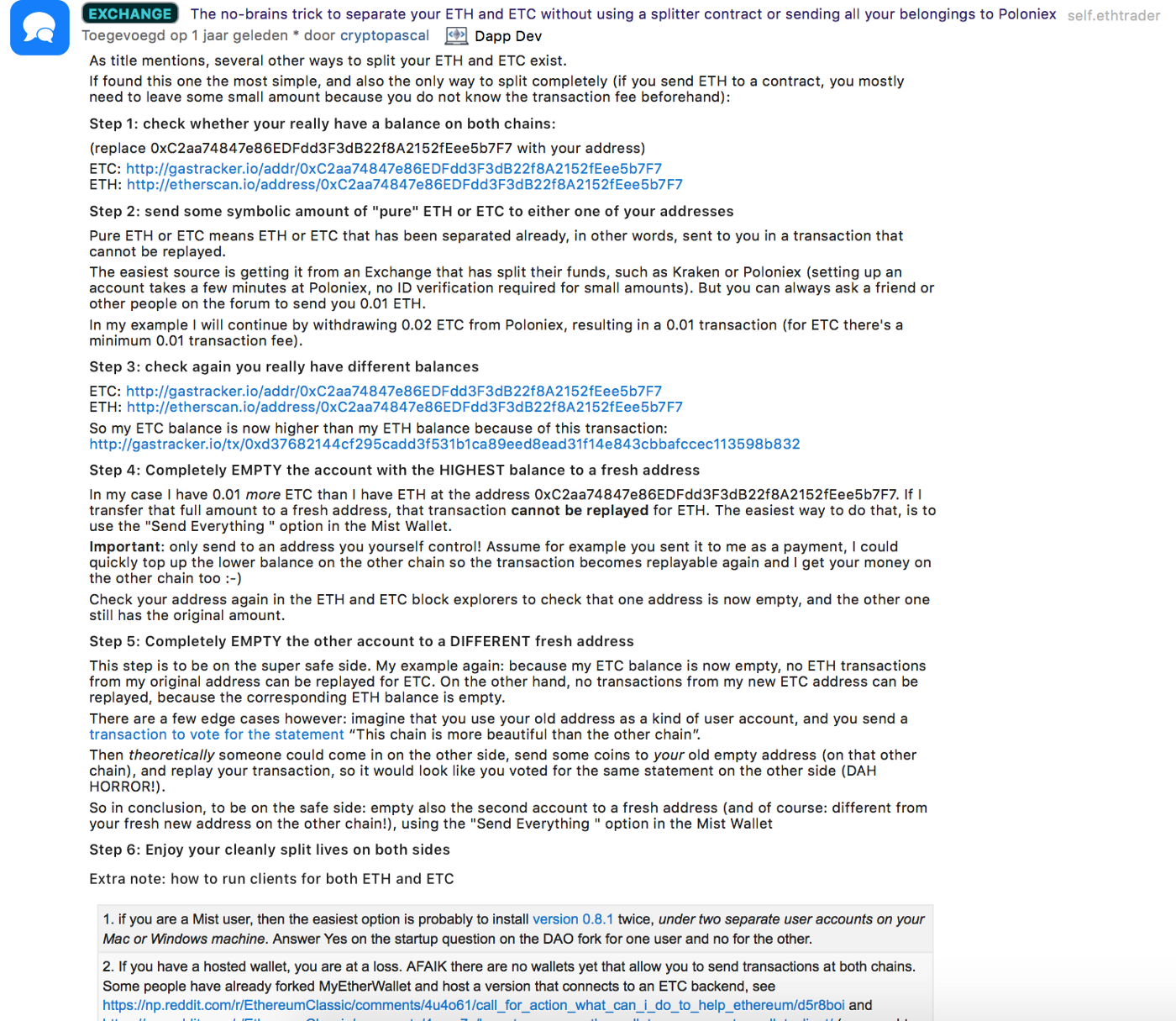

Manual replay protection — 6 Easy Steps

Ingredients:

  • ETH wallet + ETC wallet
  • 1 teaspoon pure ETH
  • two block explorers

Procedure:
1. send ETH balance, including the teaspoon to one address (can’t be replayed, because the ETC balance is insufficient)
2. send ETC balance to another address

This can still go wrong if an attacker sends you a teaspoon on the other chain quickly enough.

Automatic — EIP 155

A few months of this later…

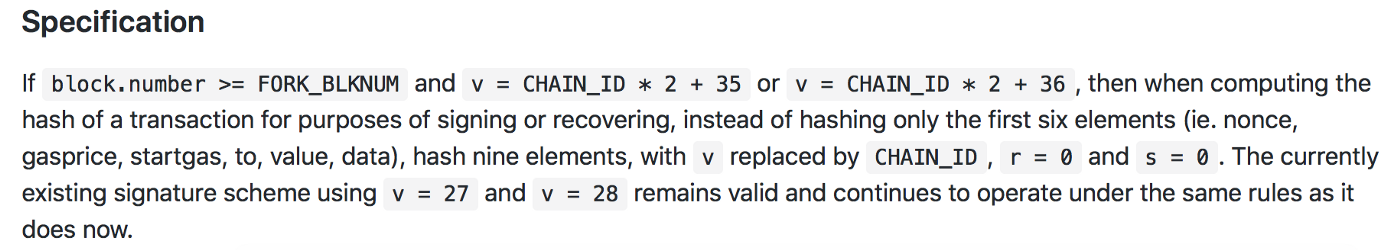

EIP 155
  • another hard fork (Spurious Dragon, Nov 2016)
  • opt-in, but wallets use by default (ecosystem is more kumbaya than Bitcoin, so these upgrades can be rolled out quicker)
  • same address format, so people can still accidentally send ETH to an ETC address, etc.
  • Each hard fork needs to decide if they want to add replay protection, so this requires guessing if it’s going to be contentious.

Bitcoin Cash

  • initially opt-in
  • last minute change to mandatory
  • same address format
  • SIGHASH_FORKID and BIP43

BIP143: new signature algorithm

  • BIP143 is part of SegWit
  • covers value of the input being spent
  • solves quadratic hashing
  • must be combined with a SegWit transaction
  • BCH uses BIP143 without SegWit, causing BCH tx to invalid on BTC chain (they also get some SegWit benefits, while still being able to denounce this technology in their investment pitch)

Note: this only works in one direction, which is where the next section comes in.

SIGHASH_FORKID

Mastering Bitcoin has a chapter on what SIGHASH_TYPE is about.

  • mandatory for BCH
  • valid but non-standard for BTC
  • makes BTC transactions invalid on BCH chain

Combined with BIP143: protection both ways

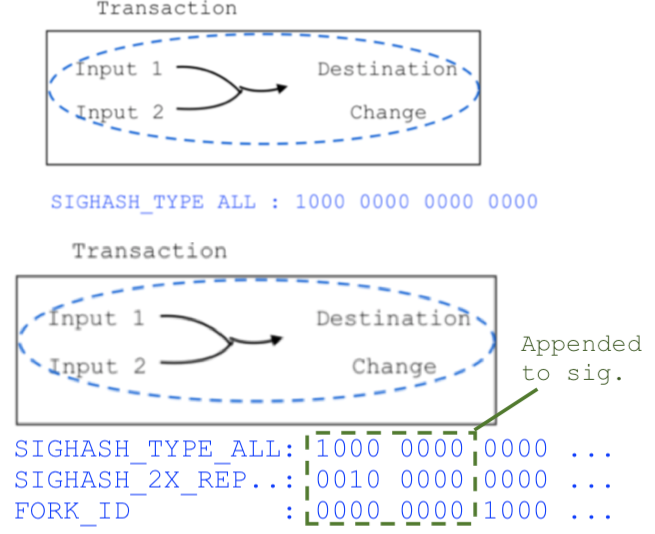

The 0x01 at the end of a normal transaction is SIGHASH_ALL.

Note that the SigHash field is four bytes when you sign it, but it gets truncated to the last byte when you serialise the signature (same in SegWit).

Ledger hardware signing

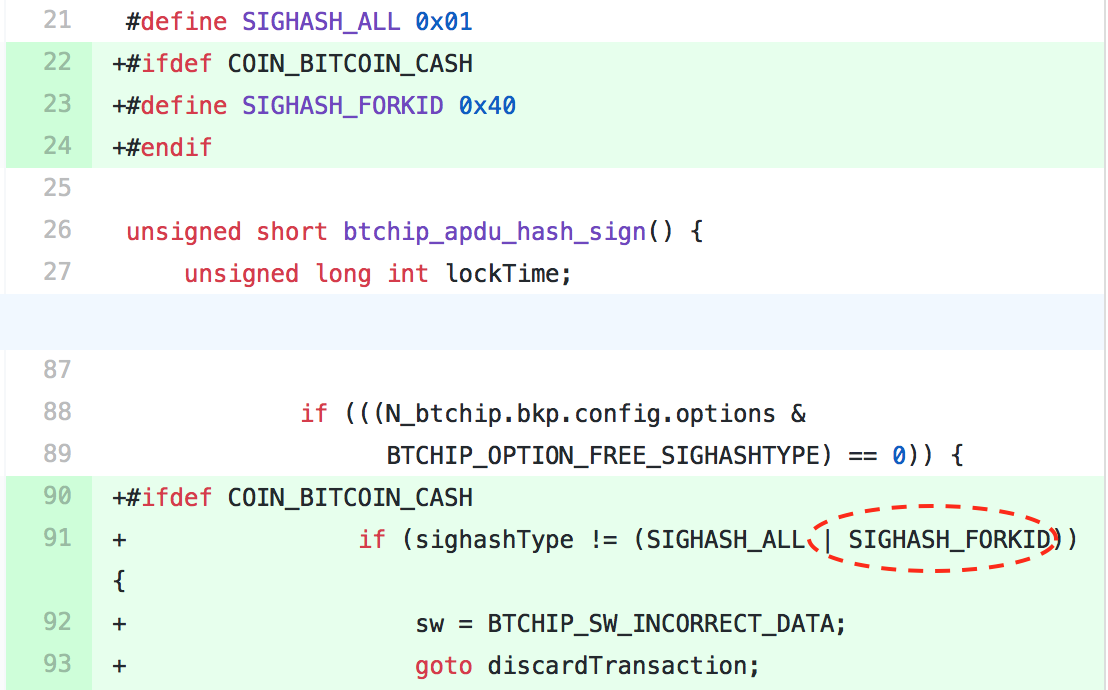

Sometimes it’s really hard to figure out what’s going on based on just (lack of) specs and blog posts. So just read the source code! The changes made on the Ledger hardware side seem pretty simple:

Before the Ledger hardware signs a BCH transaction, it checks if FORKID is set (by the Chrome extension which produces the unsigned transaction).

The Chrome extension which generates the unsigned transaction is a bit more complicated, but the magic seems to happen here. I think that when it uses BIP143, if there’s no SegWit it assumes it must be Bitcoin Cash.

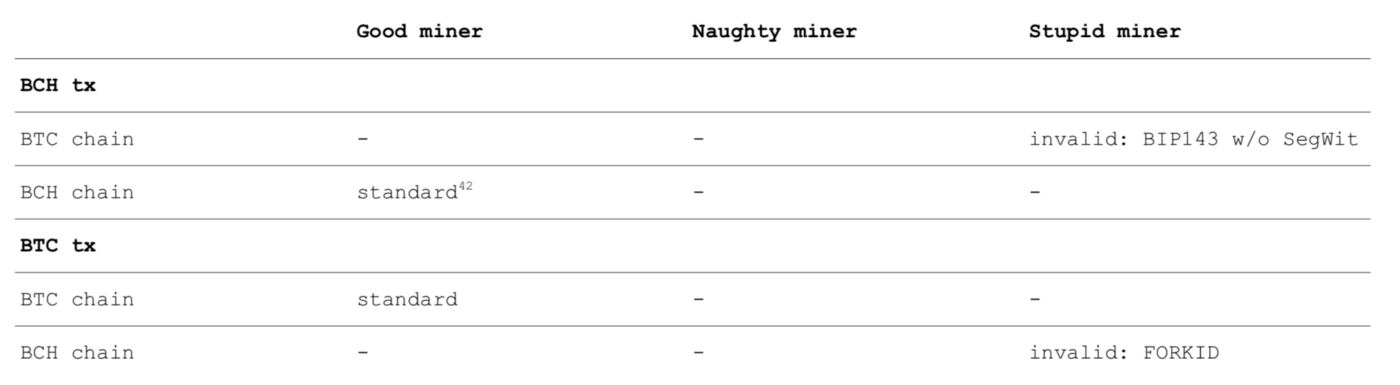

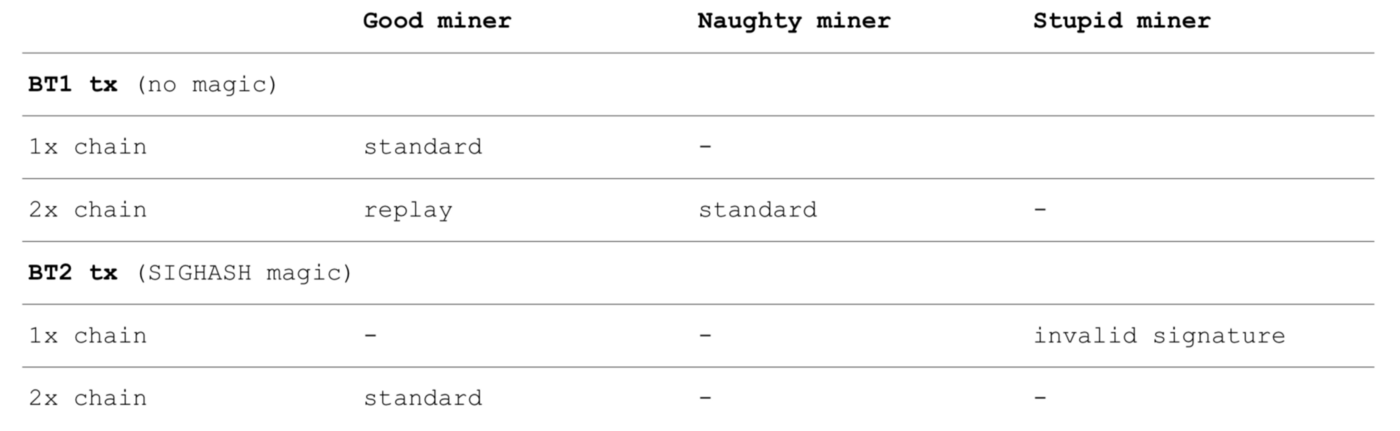

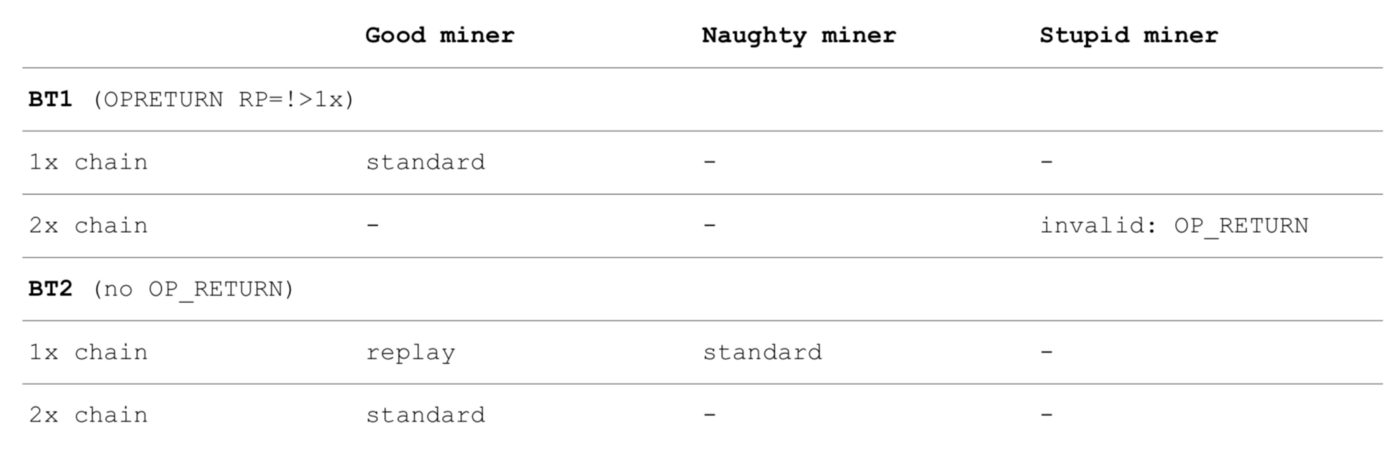

I find the following diagram somewhat helpful to visualize what’s going on:

“Naughty miner” isn’t meant as an accusation. It’s just to illustrate why relying on merely IsStandard() is not enough for good replay protection. IsStandard is a subset of all valid transactions. Non-standard transactions are not relayed or mined by default, but, a “naughty miner” could just mine it, making replay protection ineffective. Similary, there are no stupid miners; nobody would waste $50,000 worth of electricity and equipment amortization to produce an invalid block.

Bitcoin Gold

  • Replay protection mechanism TDB… (YOLO)
  • They did commit to making addresses start with a G (A for SegWit), which is nice.

SegWit2x Constraints

SegWit2x imposed a number of constrainst on any potential replay mechanism. I don’t think these were terribly well though out, but they make some sense.

  1. minimal changes to software of participants (most participants are adding non-protocol level replay protection)
  2. capture light weight wallets (light weight clients can just inspect block 494784 to prevent this)
  3. nice to have; mostly a gesture to Core
  4. limited development and review resources
  5. (?) avoid hard-fork with BU

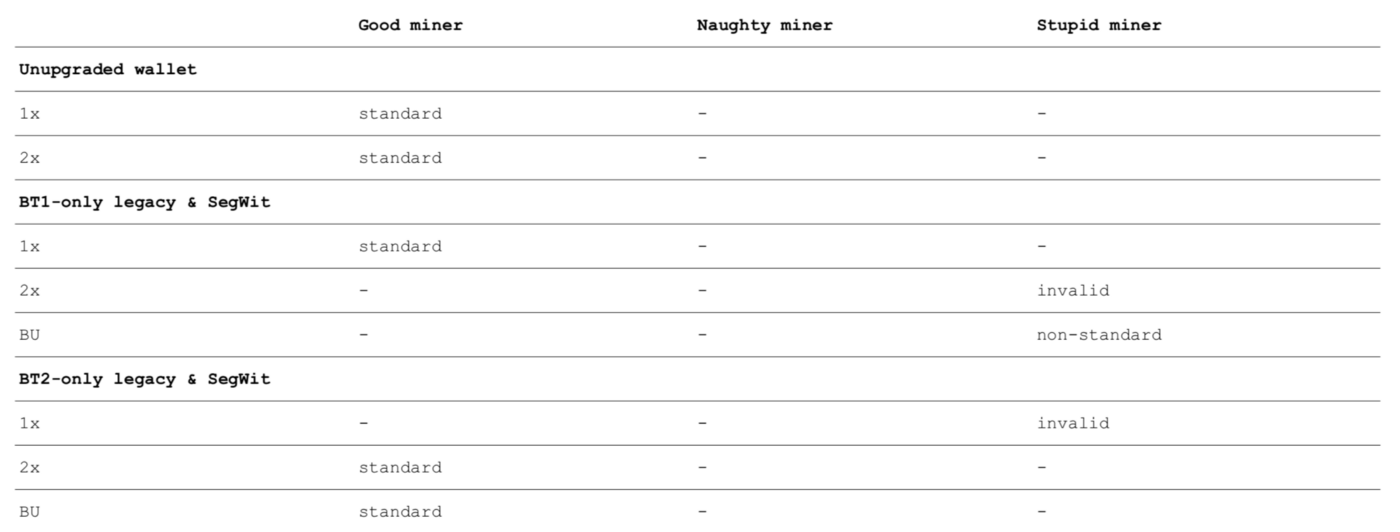

SegWit2x self imposed constraints, possibly not solvable

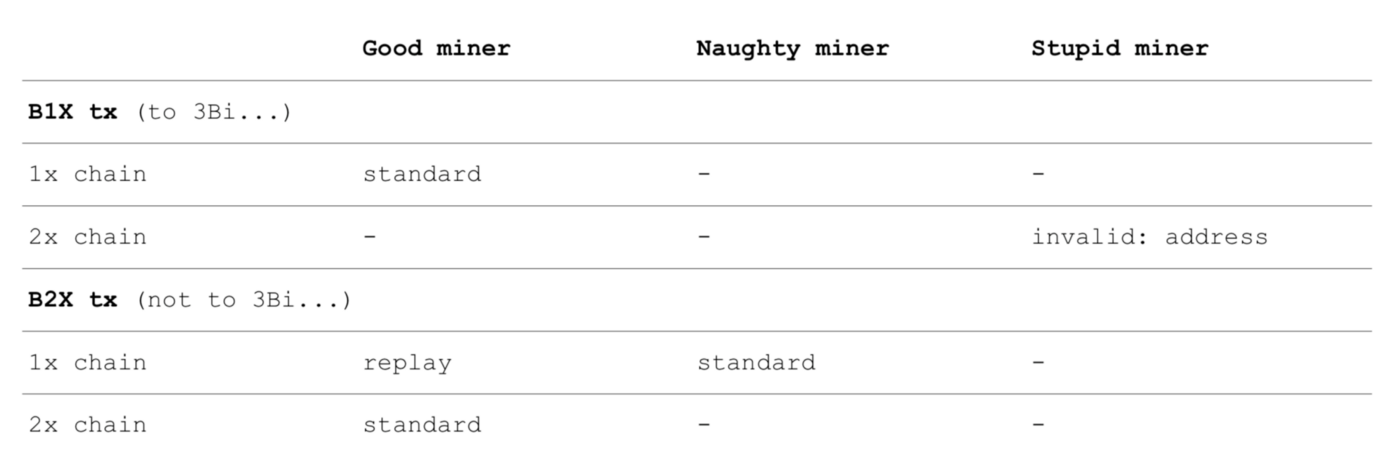

1x-only using magic address

  • any funds sent to 3Bit1xA4ap… would make the transaction invalid on the 2x chain
  • manual, no wallet change needed (though not all wallet support sending to multiple addresses)
  • UTXO “spam”
  • phishing “tutorials” (Google is generally not in a hurry to remove phishing ads
  • BU willing to support it, using IsStandard()

1x-only using OP_RETURN

  • OP_RETURN RP=!>1x (PR 134)
  • no UTXO spam
  • does require wallets to implement it

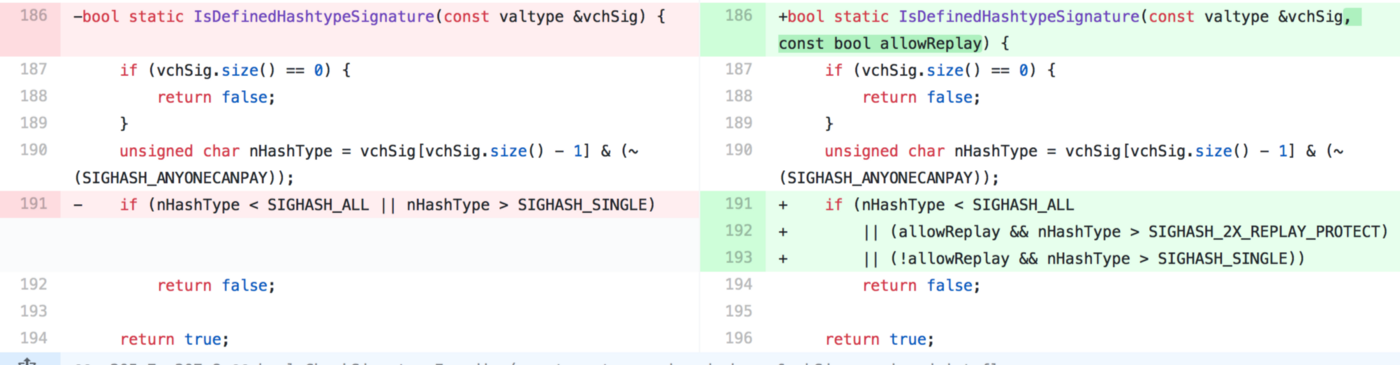

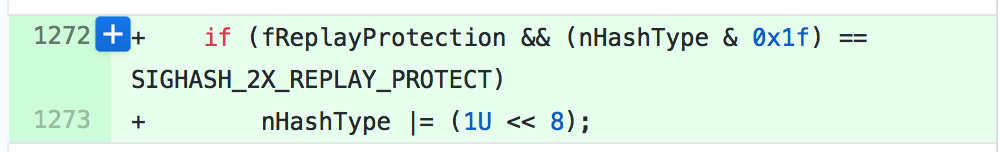

2x-only — SIGHASH magic

  • PR 131, not that this approach is quite different from BCH
  • New: `SIGHASH_2X_REPLAY_PROTECT`
  • Sets bit 8 in pre-image (BCH used bit 6)
  • Bit 8 isn’t appended to signature
  • Core node consider signature invalid
  • hard-fork relative to BU


The Future — Spoonnet and other proposals

Spoonnet is a series of proposals of things that can be improved in a hard-fork. It also contains a proposal for replay protection, which is somewhat similar to the 2x-only SIGHASH magic above.

  • uses nVersion (“A tx is invalid if the highest nVersion byte is not zero, and the network version bit is not set”)
  • hardfork network version bit is 0x02000000
  • 0x02000000 is added to the nHashType
  • leaves serialized `SIGHASH_TYPE` alone

Another proposal is being discussed on the bitcoin developer mailinglist, which also includes an address change.

SegWit2x — Unprotected?

  • HODL! Easiest thing to do during fork is to not use Bitcoin for a while, but not everyone has that luxery.
  • UTXO mixing
  • nLockTime
  • >1 MB transaction (actually slightly less than 1 MB)
  • Or just use a custodial service 🙁

Custodial wallets and exchanges can take care of the splitting. They can split customer funds in batches, saving money. Unless something goes wrong and they become insolvent.

UTXO Fairy Dust

Update: chainspl.it has thought about these proposal more than I have.

  • Ask miner: coinbase tx unique for each side (natural, organic replay protection, but can’t be done until 100 blocks after the fork)
  • Service can split using other method
  • paid) API with anyone-can-spend UTXO’s?
  • Wallet coin selection must include these inputs (they would need some sort of proof-of-replay-protection…)

nLockTime — 4 easy steps

nLockTime: not mined (consensus rule) or relayed (IsStandard() rule) before block N.

H1: block height of 1x chain, H2: block height of 2x chain

  1. generate two addresses (A1, A2)
  2. check which chain moves faster (e.g. H2 > H1)
  3. sign tx to A2 with H1 < nLockTime < H2
  4. send to A1 w/o nLockTime (wait until confirmed, try again if needed)

Problems:

This is hard to do manually, but also hard to automate for non-custodial wallets. User needs to come back several times, lots of edge cases to handle in UI.

  • wallet must monitor both chains
  • need to wait for gap in block height; only works while one side of fork has a big enough lead. Can’t be used immediately after fork
  • sweep is bad for privacy
  • must wait for step 4, risks:
    * reorg (e.g. intentional wipeouts)
    * fees in BTC terms > balance
  • receiving new unsplit funds. When receiving new funds, wallet must reason if those funds are already replay protected, or its coin selection must always include coins that are known to be protected.

We’ll learn all sorts of new problems as people start losing their money.

> 1MB block

Actually the block needs to be smaller than 1 MB (ex. witness), such that it wouldn’t fit into a 1 MB block due to the space needed for the block header and coinbase transaction. It would just fit under the 1,000,000 byte transaction limit on the 2x chain.

It’s non-standard, so requires coordinatation with miner. Expensive, so easier for a service.

Maybe use CoinJoin (if there’s a way to guarantee the tx will be big enough)?
